Authentication

This document provides instructions on how to authenticate with our API using OAuth 2.0.

Setup

To successfully authenticate, you will need the following parameters:

Parameter	Description	Value
`accessTokenUrl`	The URL to request the access token.	`https://keycloak.{{account-example}}.{{enviornment}}.docbyte.cloud/realms/{{tenant}}/protocol/openid-connect/token` `account-example` ,`environment` & `tenant` will be provided by Docbyte
`clientId`	Client identifier for OAuth.	Provided by Docbyte
`clientSecret`	Client secret for OAuth.	Provided by Docbyte
`scope`	Scope defining access permissions.	`openid email profile`

Token Retrieval Process

Request

POST <accessTokenUrl>

Content Type

CODE

application/x-www-form-urlencoded

Required Parameters

To authenticate, include the following parameters in the request body, formatted as URL-encoded:

Parameter	Value
`grant_type`	`client_credentials`.
`client_id`	The client ID provided by Docbyte.
`client_secret`	The client secret provided by Docbyte.
`scope`	`openid email profile`.

Response

Upon a successful request, the authentication service will respond with a JSON object containing the following information:

JSON

{
    "access_token": "{access token}",
    "expires_in": 300,
    "refresh_expires_in": 0,
    "token_type": "Bearer"
}

Token Validity

Each generated token is valid for 5 minutes.

Use the Token in Requests

In each API request, ensure the Authorization Header is set to Bearer Token and includes the retrieved access token.

CODE

Authorization: Bearer <your_access_token>

Error

If an attempt is made to access the API without authentication, the service will return a 401 Unauthorized status.

JSON

{
	"message": null,
	"code": "NOT_AUTHORIZED"
}

Summary

To authenticate:

Obtain necessary credentials and endpoint from Docbyte.
Send a POST request to the accessTokenUrl with the required parameters.
Use the returned access_token in your API requests for secure access.
Re-authenticate every 5 minutes or as needed to maintain valid session access.

By following this setup, you ensure that your API interactions remain secure and within our authorization policies. For further support, please contact the Docbyte team.

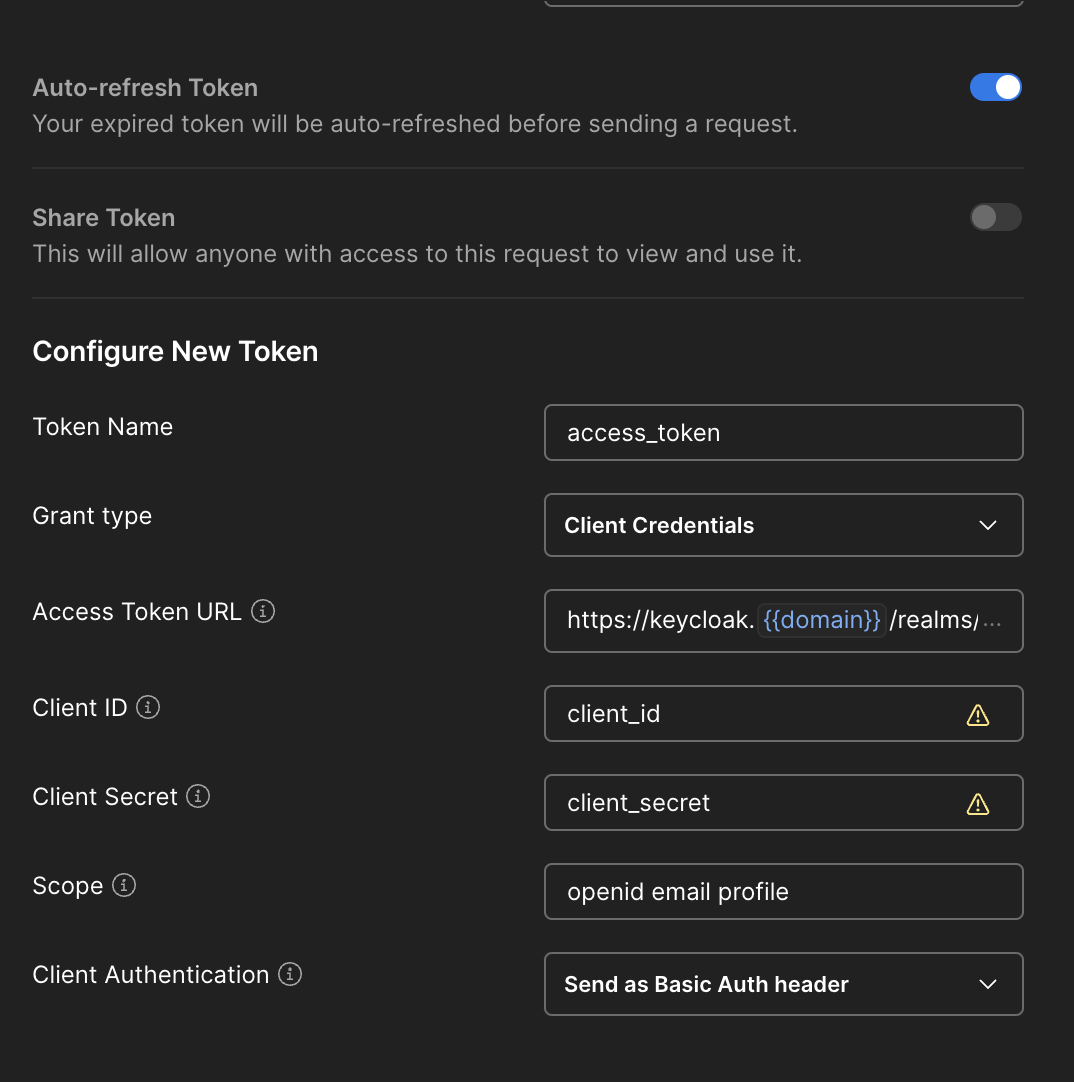

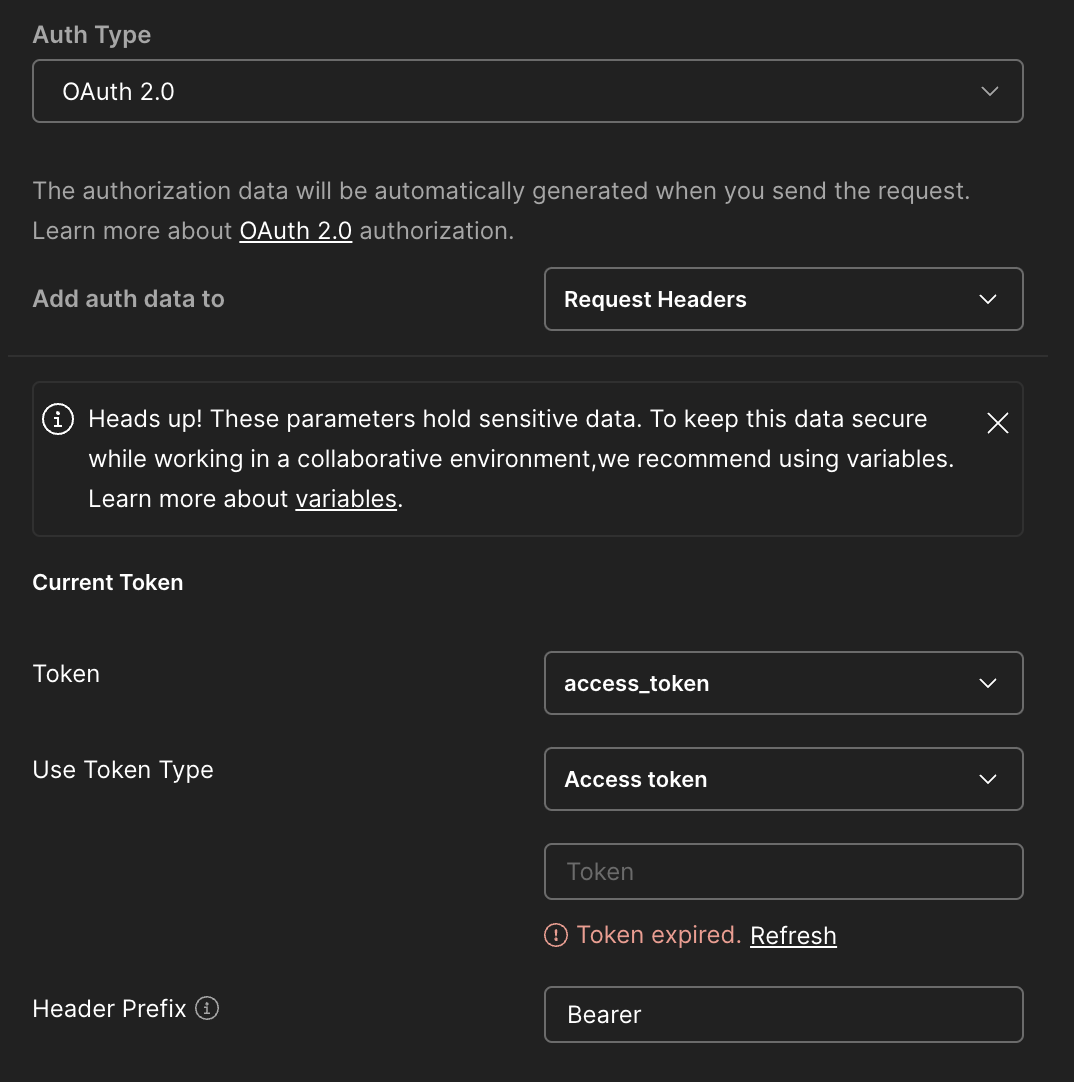

Example in Postman

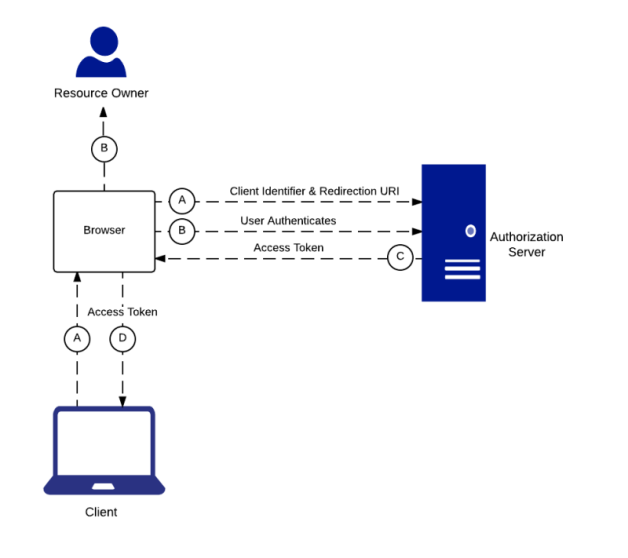

OAuth 2.0 Authentication Flow
